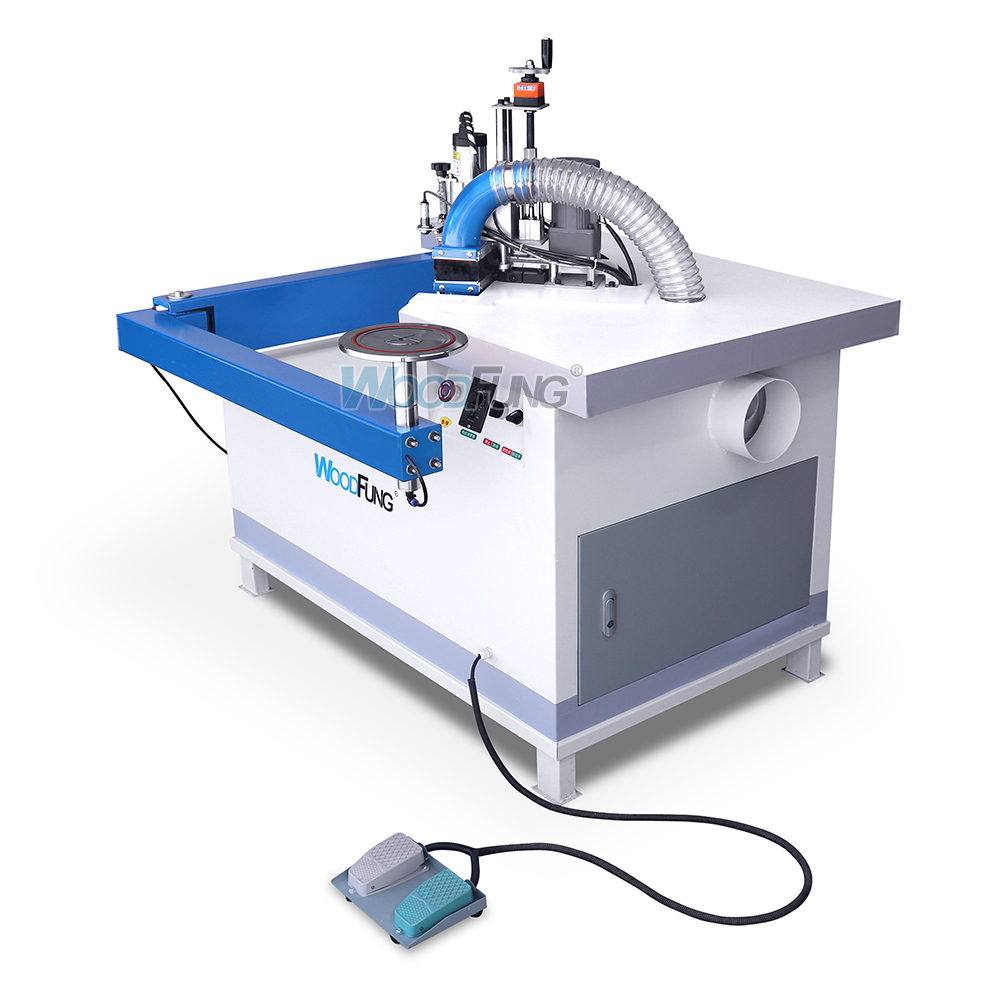

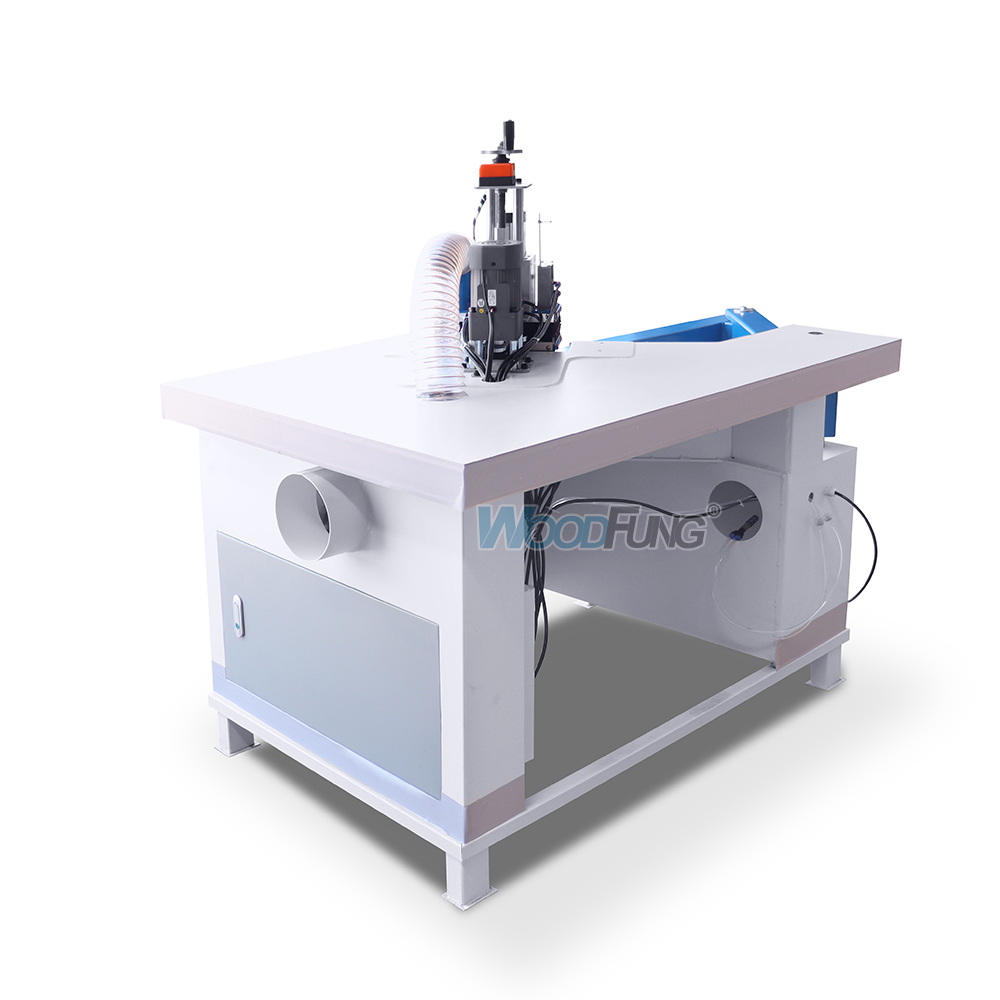

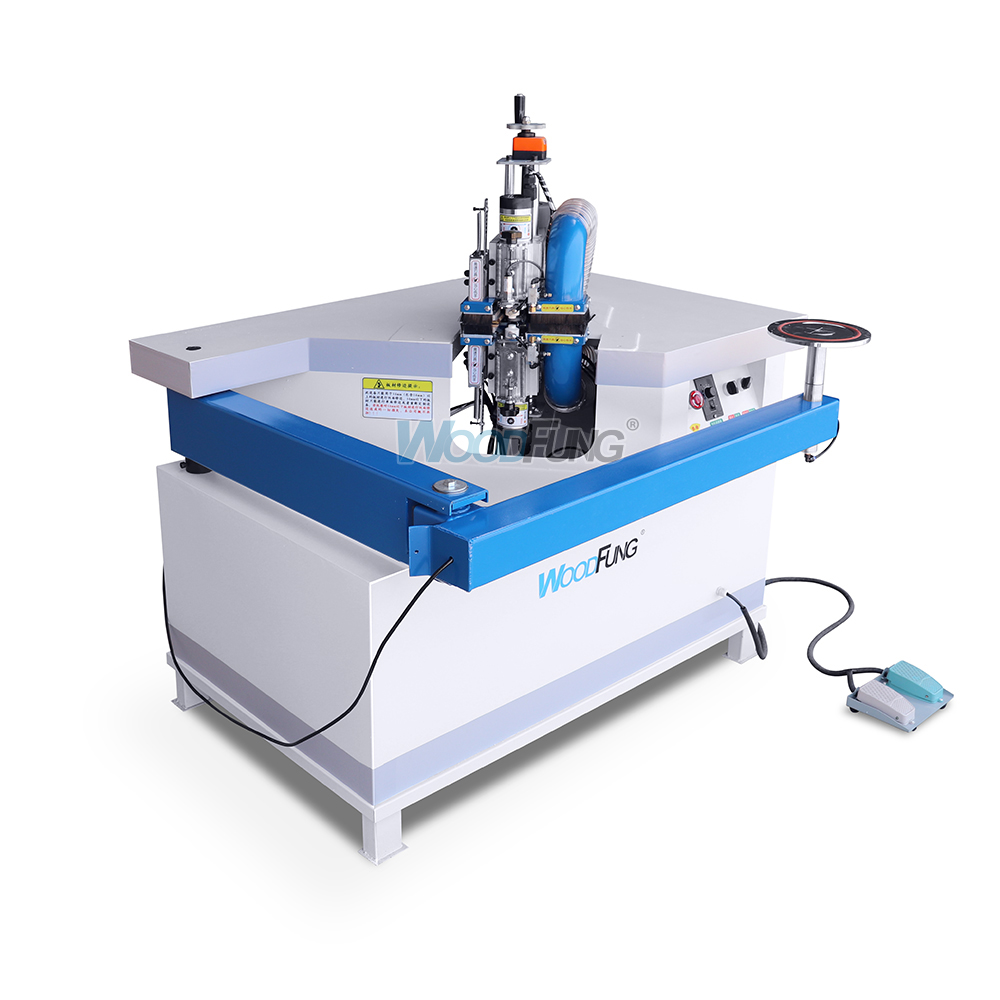

X-1 PVC edge band trimmer automatic curve line edge banding and edge trimmer machine

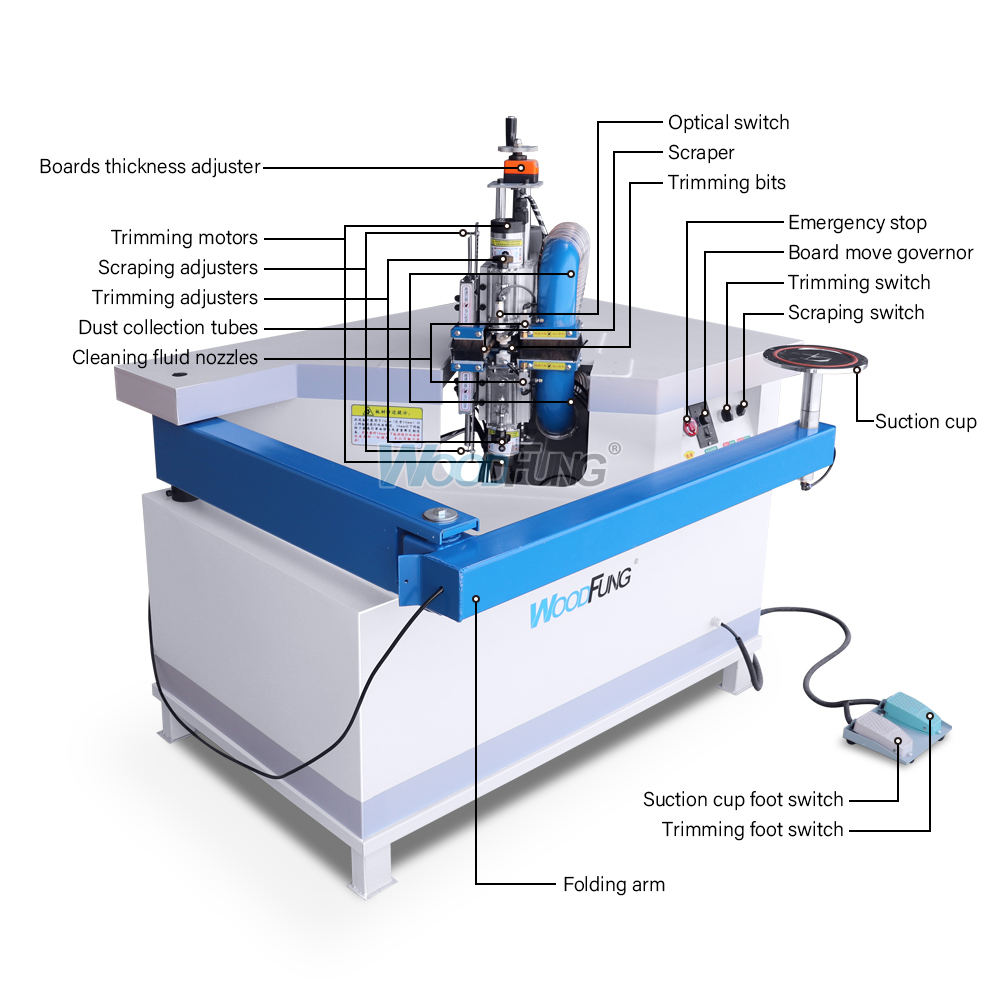

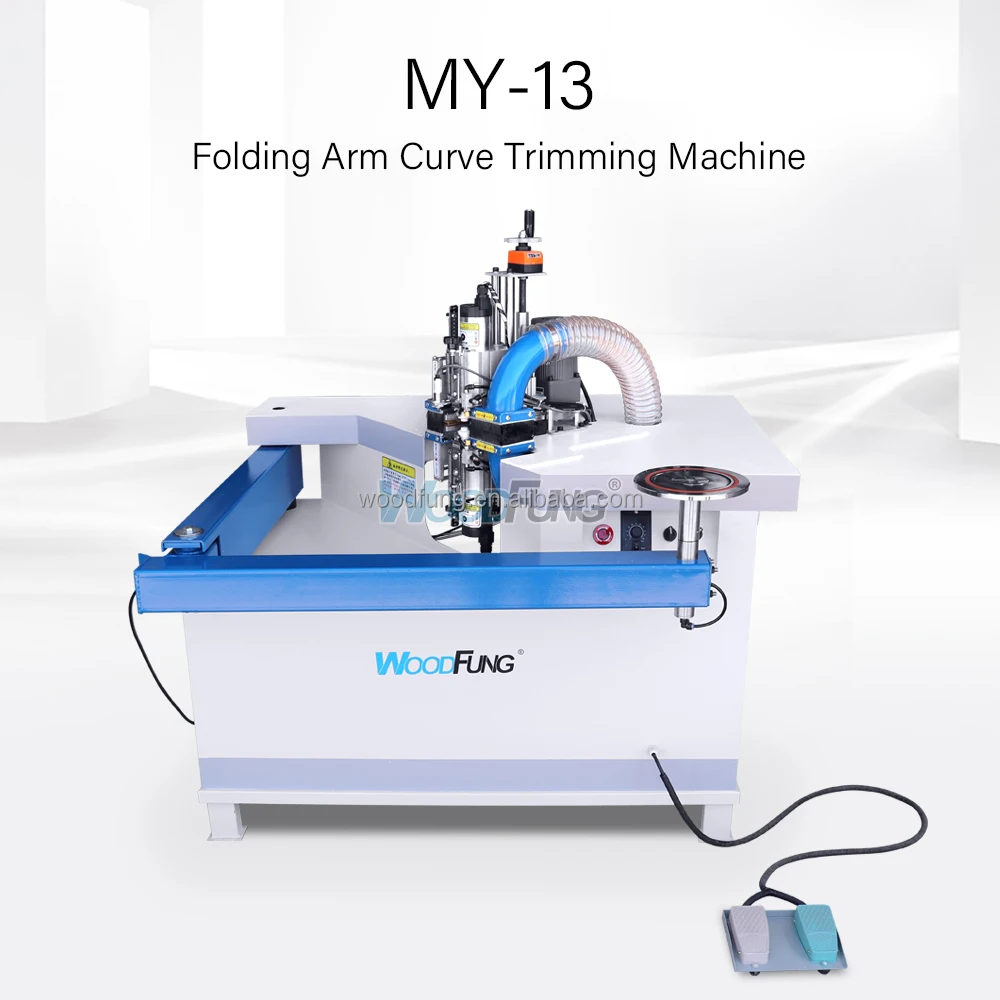

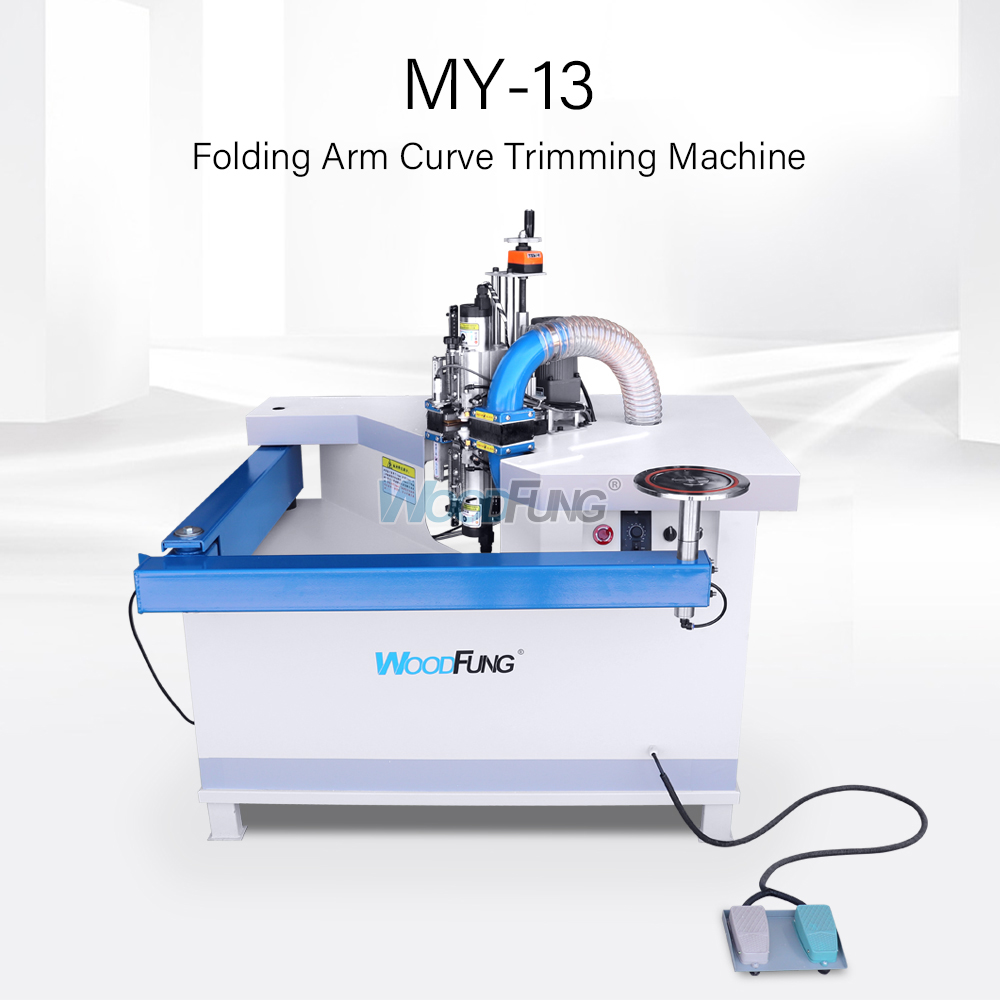

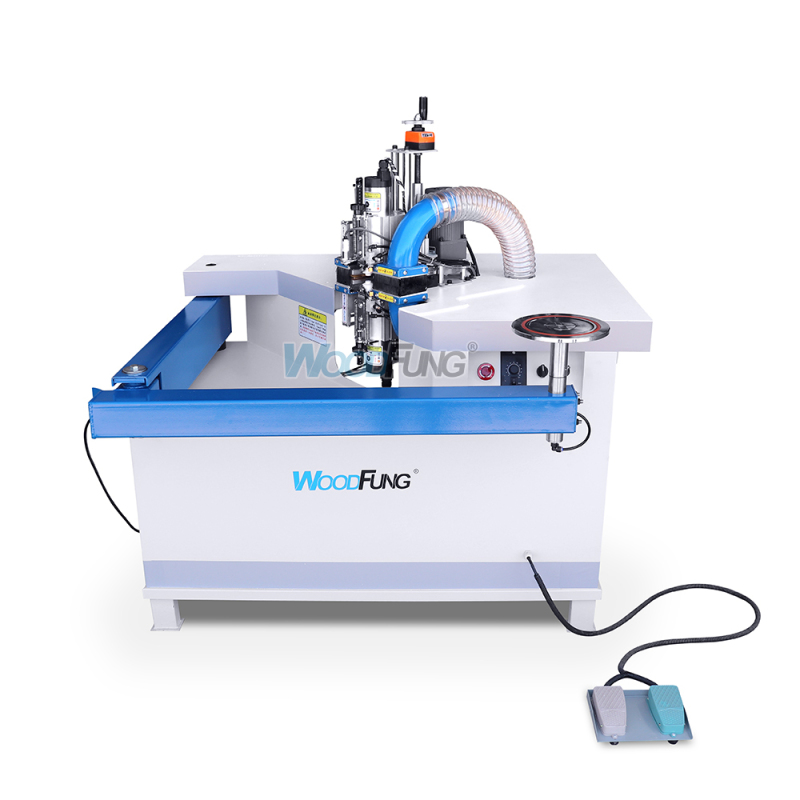

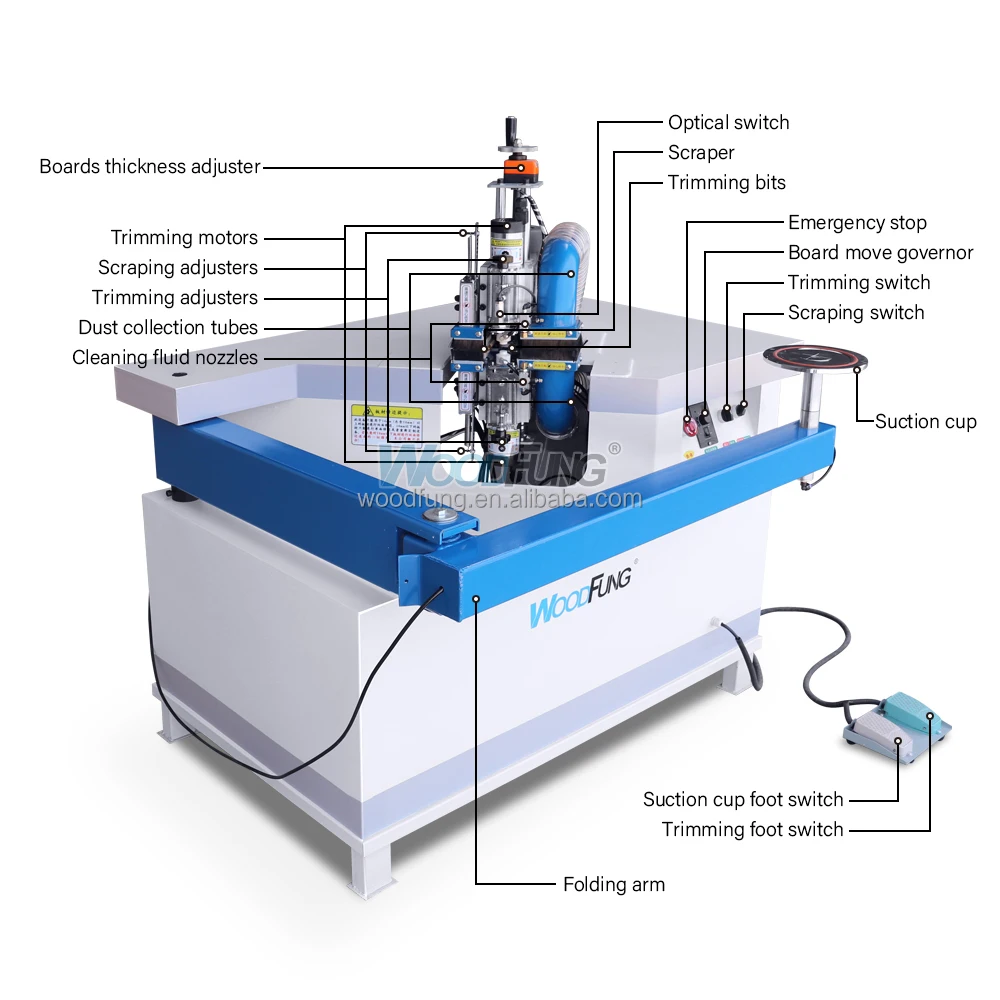

The MY-13 curve trimming machine is equipped with a folding arm device, a suction cup and a small platform, which can be used for trimming both large and small boards.
Description Review
Description

Features

1. Automatic cleaning.
2. Profiling dynamics.
3. Reimming top and bottom.
4. Scrape.


MY-13 Woodworking pvc manual curve hand held edge trimming edge trimmer machinery veneer/pvc/plastic/melamine paper edge trimming machine/ furniture edge tape trimmer

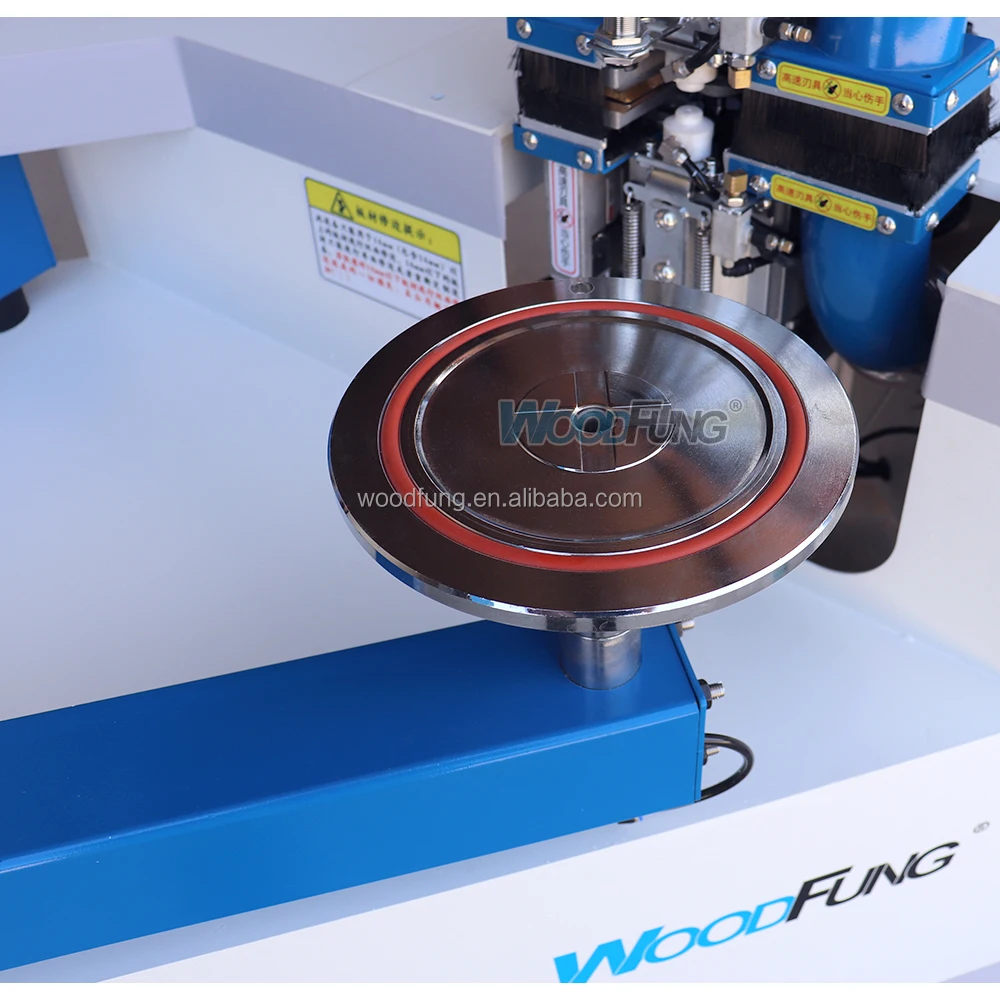

It is recommended to use suction cups for large boards.

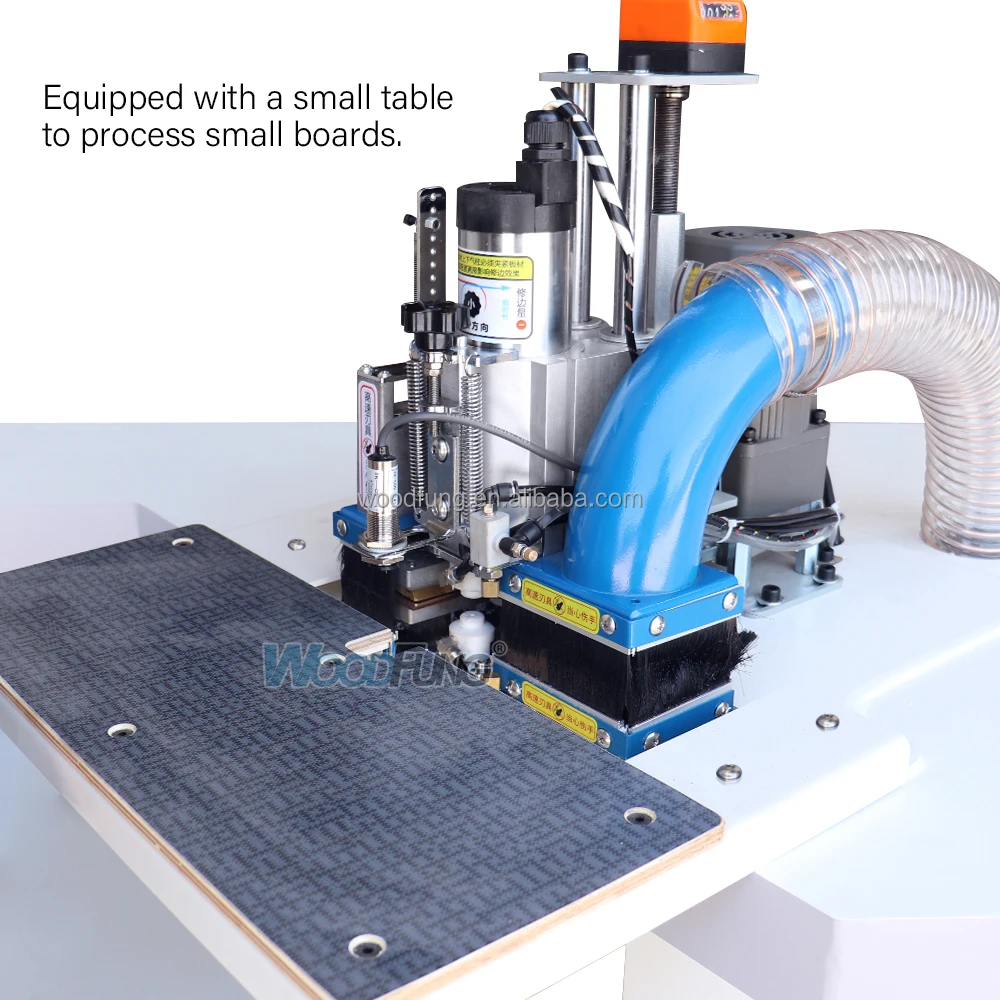

It is recommended to use the small workbench to operate the small board.

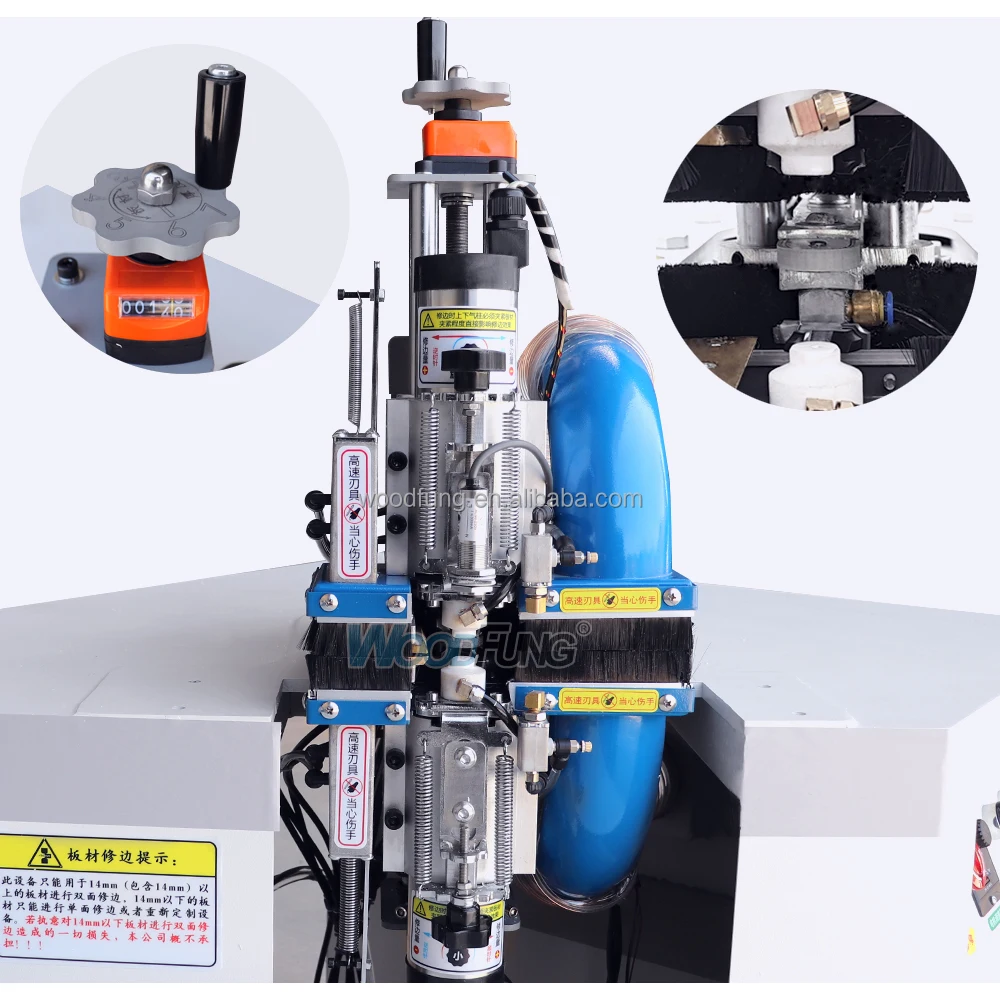

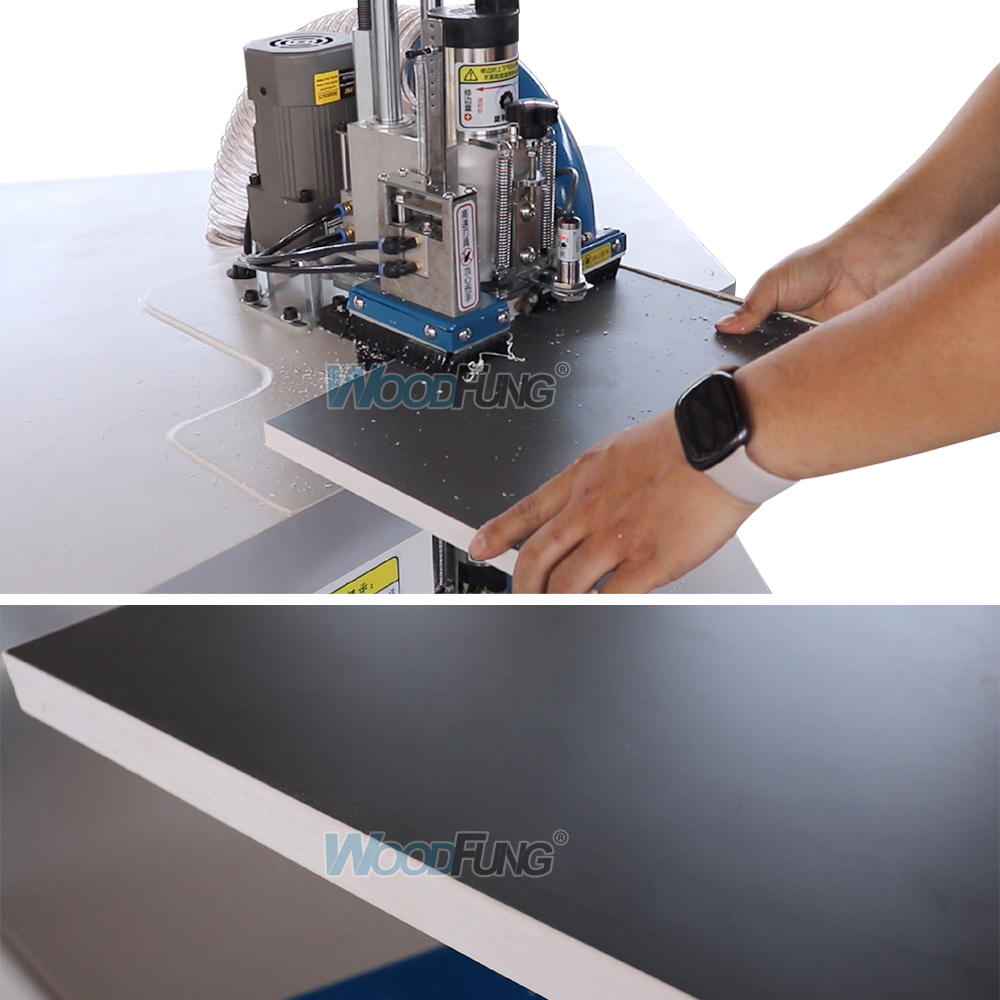

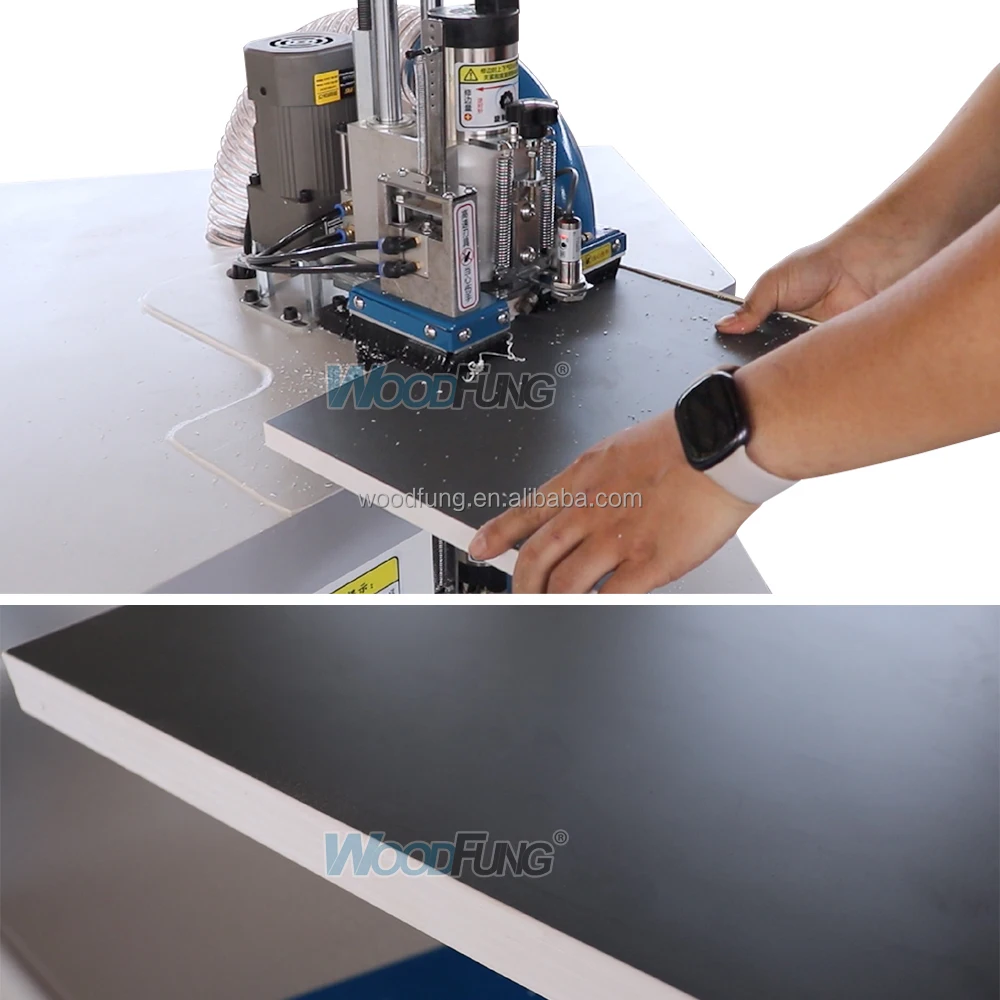

Up and down trimming knives, complete at one time.

Service and Guarantee
1. We welcome customization of body color, logo, label, shape, structure, etc.
2. The Woodfung brand welcomes you to become our exclusive regional agent.
3. We provide free picture and video shooting services for our agents.
4. This machine is provided with lifetime technical support and one-year warranty service by Woodfung Machinery.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services.

Specification
Model
MY-13
Power supply voltage
220V 50Hz single phase
Total power
1.7KW
Air source pressure
0.6-0.8Mpa
Edge strip thickness
0.4-3mm
Trimming board height
<14mm single-sided trimming, 14-70mm up and down double trimming (related to trimming knife)
Trimming motor
220V/800W/2400r/min
Trimming speed
0-23.9cm/s
External vacuum
Vacuum tube diameter 150mm/air volume 9800m³/h

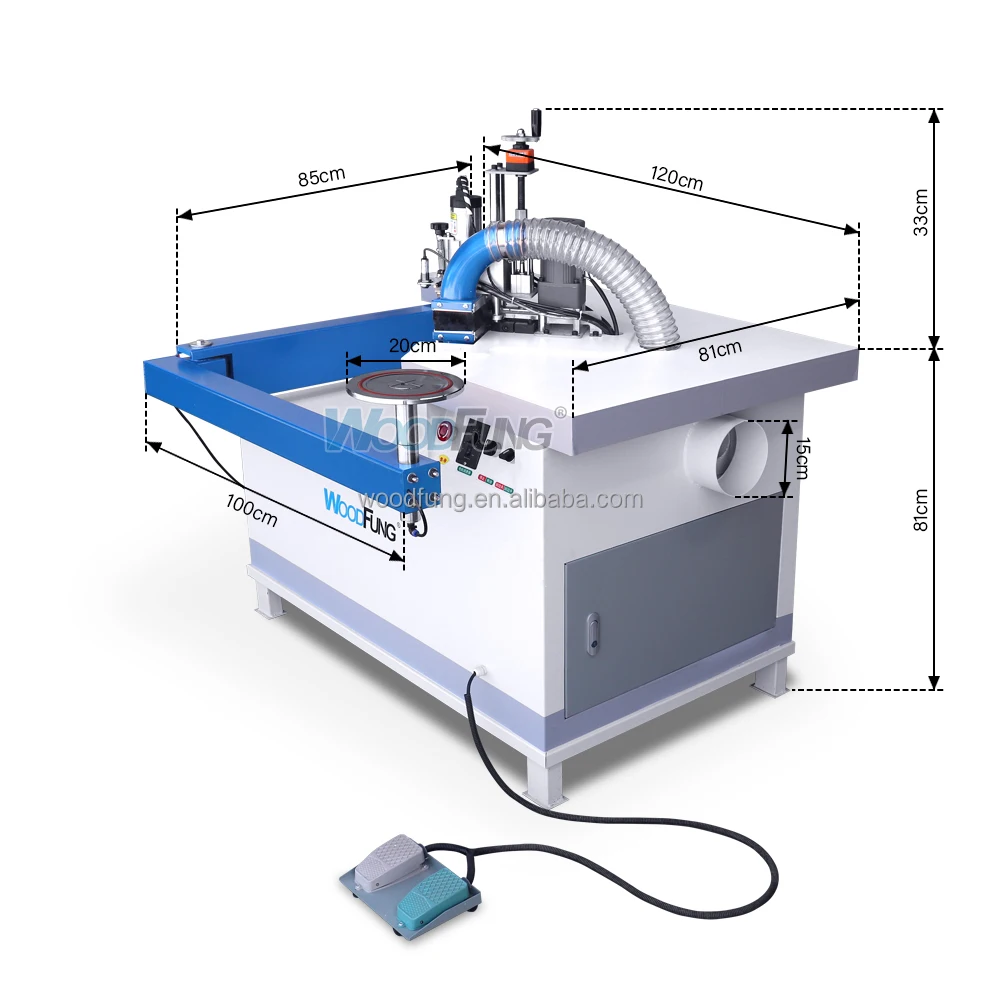

Dimensions
173*89*98cm
Weight
208kg
Trimming material type
PVC veneer melamine plastic
Applicable board
Integrated board acrylic board particle board fine wood board density board, etc.

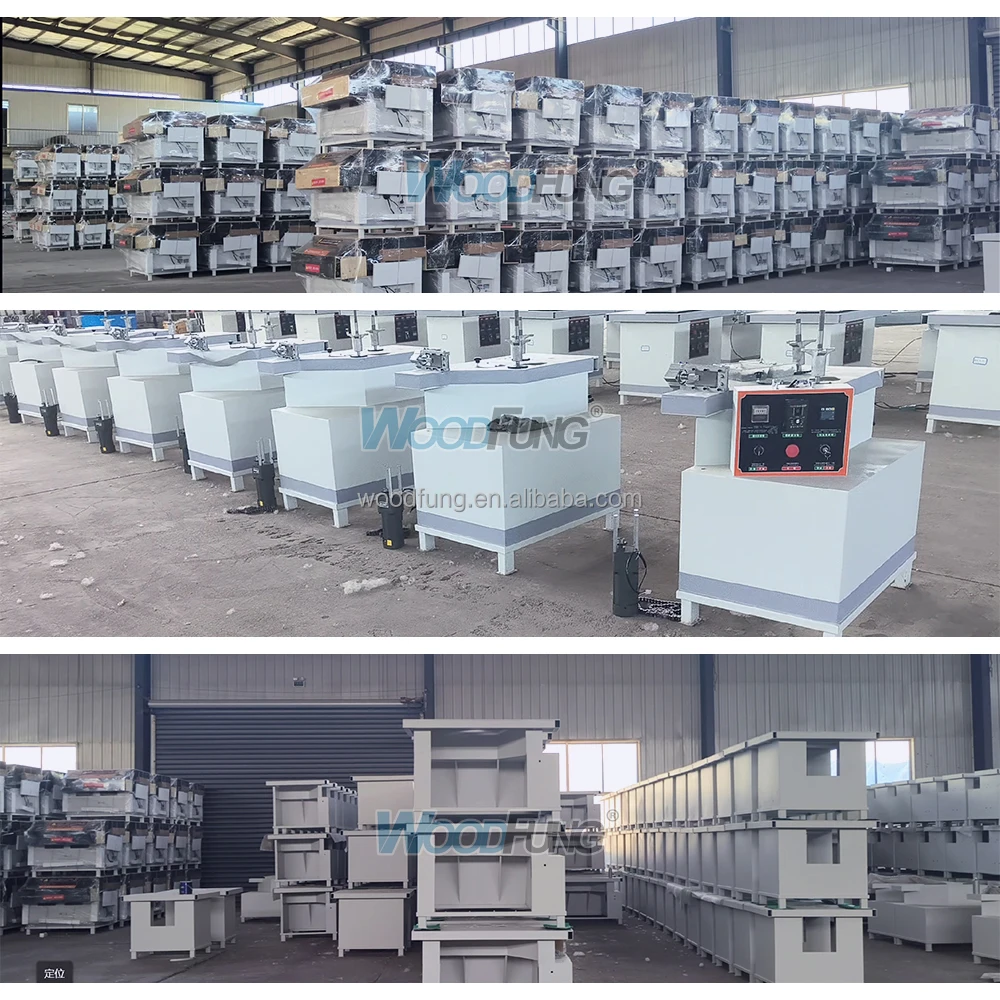

Product packaging
